Random points without rejection

May 10, 2025 at 9:20 AM by Dr. Drang

A few days ago, John D. Cook wrote a post about generating random points on the surface of a sphere. His approach was:

1. Generate three independent uniformly distributed random variables in the range from $-R$ to $R$, where $R$ is the radius of the sphere. These will represent a point in $(x,y,z)$ space.
2. Calculate $S$ such that $$S^2=x^2+y^2+z^2$$
3. If $S>R$, reject the point and go back to Step 1.

4. Otherwise, return the point

   $$(\frac{x}{S},\frac{y}{S},\frac{z}{S})$$

   which is a projection out onto the surface of the sphere.

This works, of course, but you reject nearly half of the points you generate. All the points are in a cube of volume $8R^3$, but you’re keeping only those in a sphere of volume $\frac{4}{3}\pi R^3\approx 4.19R^3$

I wanted to come up with a way to generate points directly on the sphere without any rejections or projections. To start, I decided to reduce the problem by one dimension and think about circles.

Generating random points around the circumference of a circle is pretty easy. Just generate a series of uniformly distributed random variables from $0$ to $2\pi$ and treat them as angles, ${\theta }_i$. Then the points $(R,{\theta }_i)$ will be distributed around the circumference. Like this:

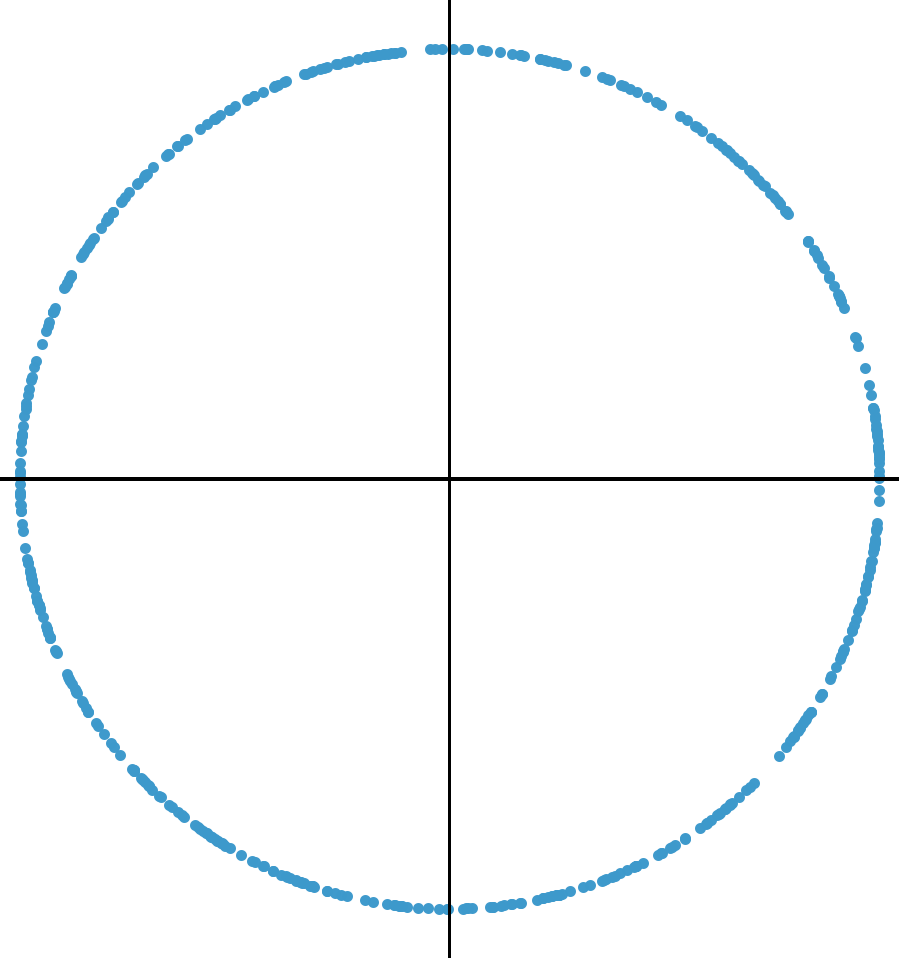

This is 500 points, and there are some gaps and clumps because that’s the nature of random number generation. But there’s no bias to the distribution of points.

Now let’s generate points within the circle. A naive way to go about this would be to generate values uniformly distributed between $0$ and $2\pi$ for the angle, as before, and to generate values uniformly distributed between $0$ and $R$ for the radius. But if we do that, we’ll get a point cloud of $(r_i,{\theta }_i)$ pairs that looks like this:

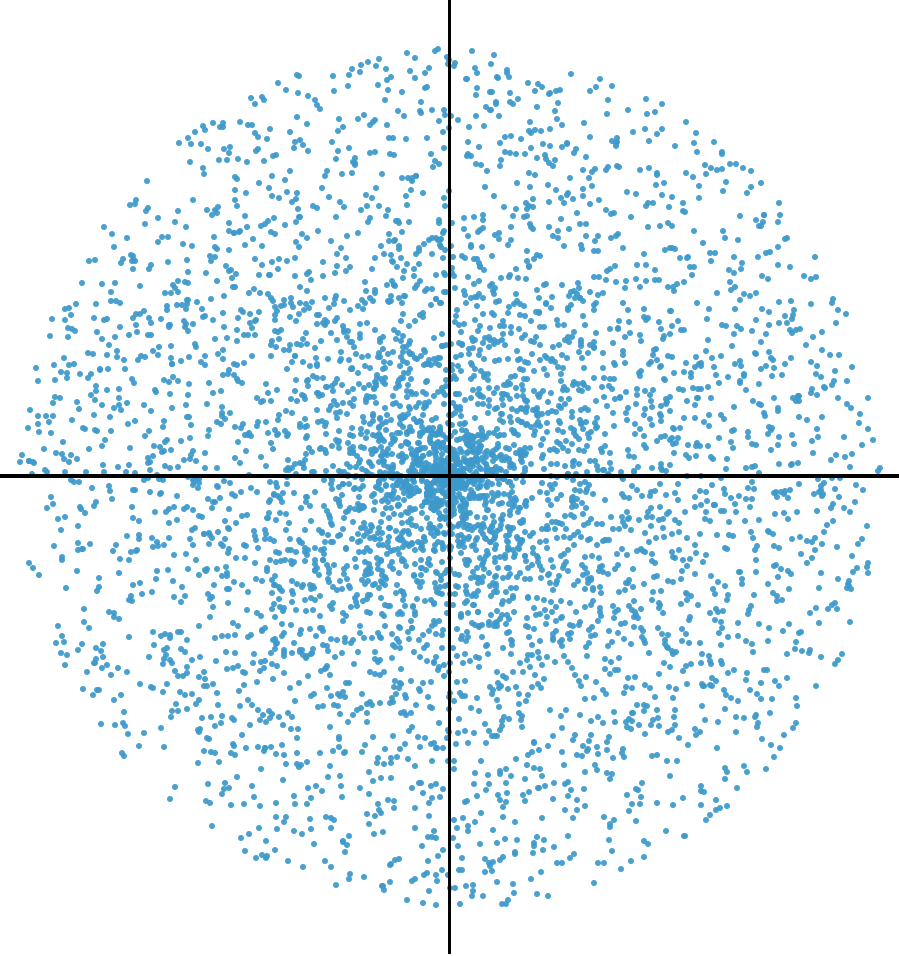

Definitely biased toward the center of the circle.

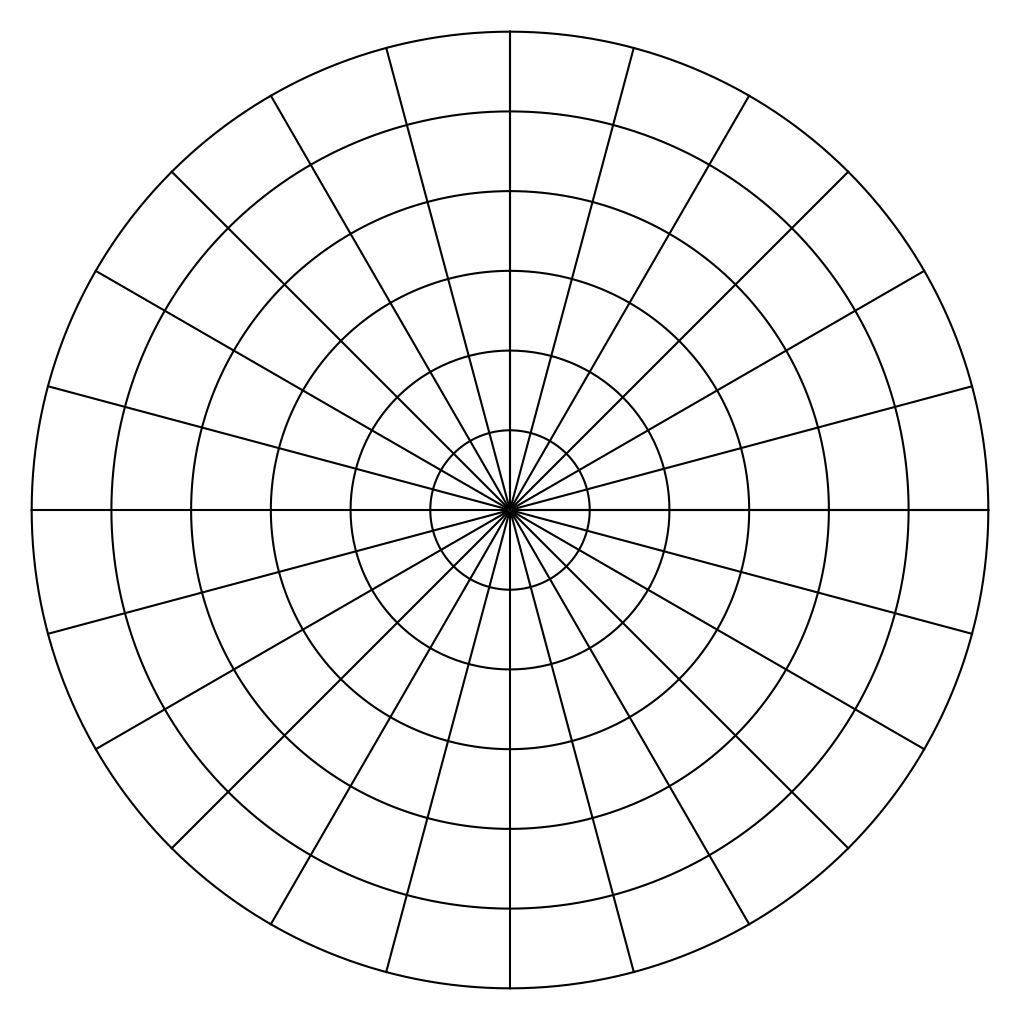

Why did this happen? Consider this polar grid:

If we generate uniformly distributed $r_i$ and ${\theta }_i$, all the sectors in the grid will have about the same number of points. But because the sectors near the center are smaller, the points will be denser in those sectors and sparser in the sectors further out. Which is exactly what we see in the naive point cloud.

The size of the sectors grows linearly with $r$, so we need to generate the $r_i$ using a distribution that grows linearly with $r$. That would be a triangular distribution with a probability density function that looks like this (for $R=5$):

The peak value of the PDF is $\frac{2}{R}$ because the area under the PDF must be one.

Many math software packages have functions for generating random variables with a triangular distribution. Using that distribution instead of a uniform distribution for generating the $r_i$ will give us a set of $(r_i,{\theta }_i)$ that’s uniformly spread over the interior area of the circle:

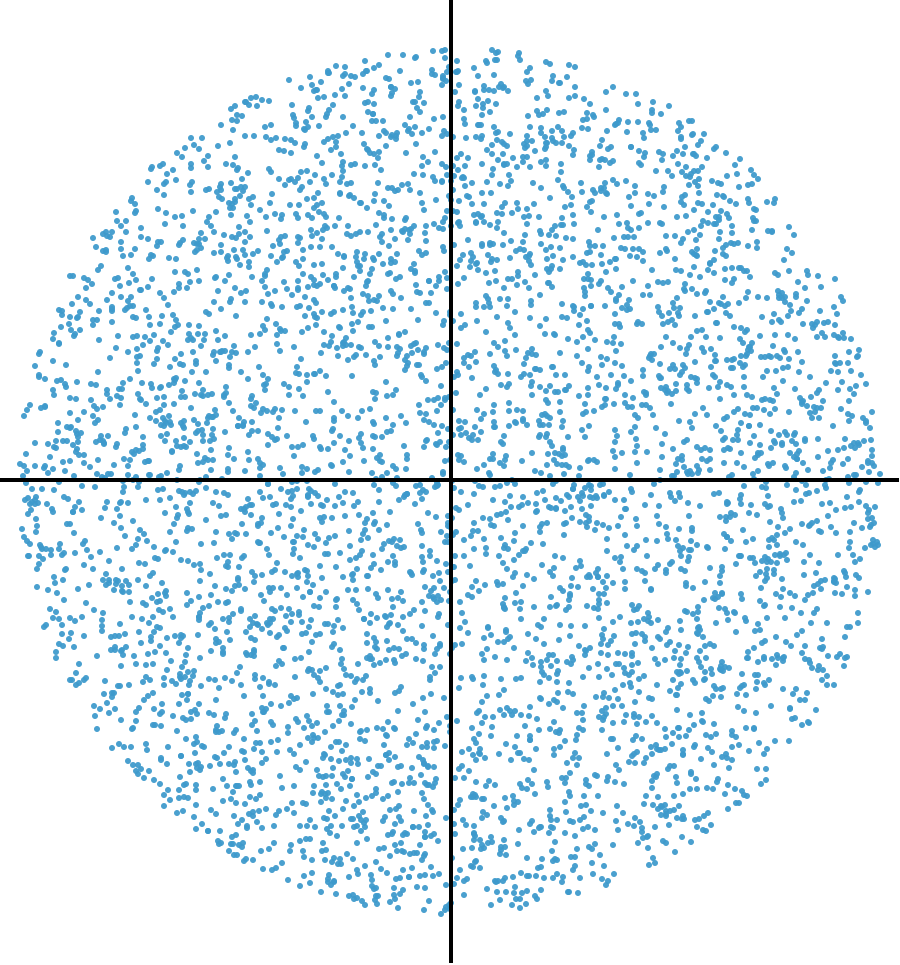

How did I know to use a triangular distribution for $r$? The polar grid certainly shows that we need to generate more large $r$ values than small ones, but how did I know that a PDF with linear growth was the one to use? There are, I suppose, many ways to think about the problem, but I thought of it in terms of the Jacobian, a topic you typically learn about in a multivariable calculus class.

We know that in Cartesian coordinates, a differential area element is the product of the two differential linear elements:

$$dA=dxdy$$

But in polar coordinates, the expression for differential area is a little more complicated:

$$dA=rdrd\theta$$

We can get this expression by considering the equations that convert between polar and Cartesian coordinates:

$$\begin{array}{c}x=r\cos \theta \hfill \\ y=r\sin \theta \hfill \end{array}$$

The differentials are

$$\begin{array}{c}dx=\cos \theta dr-r\sin \theta d\theta \hfill \\ dy=\sin \theta dr+r\cos \theta d\theta \hfill \\ \hfill \end{array}$$

which can also be expressed in matrix form:

$$\left\{\begin{array}{c}\hfill dx\hfill \\ \hfill dy\hfill \end{array}\right\}=\left[\begin{array}{cc}\hfill \cos \theta & \hfill -r\sin \theta \\ \hfill \sin \theta & \hfill r\cos \theta \end{array}\right]\left\{\begin{array}{c}\hfill dr\hfill \\ \hfill d\theta \hfill \end{array}\right\}$$

The determinant of the matrix (called the Jacobian) represents the ratio of the differential areas expressed in the two coordinate systems:

$$dxdy=\left|\begin{array}{cc}\hfill \cos \theta & \hfill -r\sin \theta \\ \hfill \sin \theta & \hfill r\cos \theta \end{array}\right|drd\theta =rdrd\theta$$

That $r$ in the expression tells us that we need to scale linearly with $r$. Hence the triangular PDF with the shape given above.

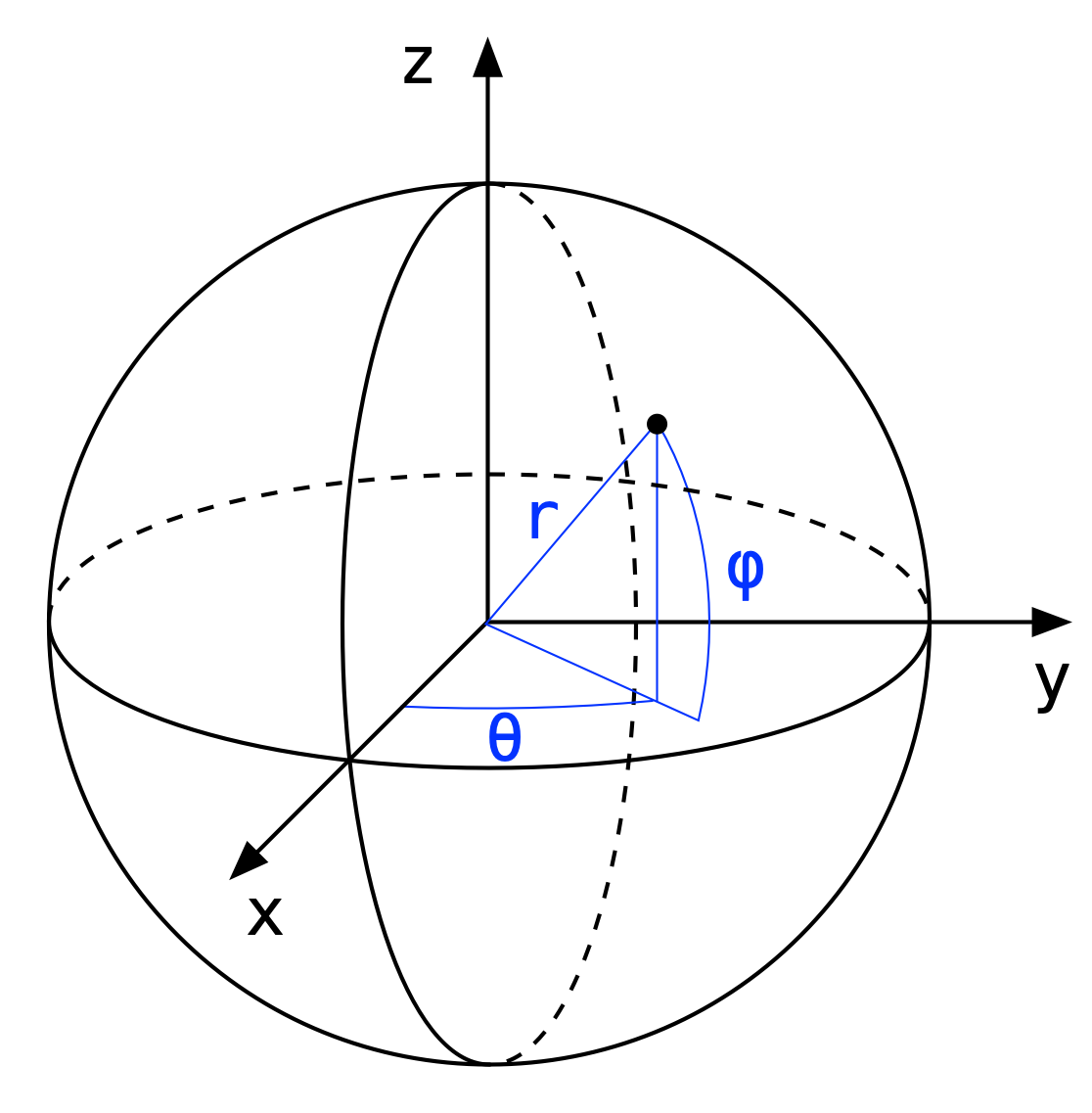

OK, now it’s time to move from circles to spheres. Here’s our coordinate system:

There are different ways to define the two angles. I’ve chosen a system where $\theta$ is like longitude and $\varphi$ is like latitude. The relationship between the Cartesian and spherical coordinates is this:

$$\begin{array}{ccc}\hfill x& \hfill =\hfill & r\cos \varphi \cos \theta \hfill \\ \hfill y& \hfill =\hfill & r\cos \varphi \sin \theta \hfill \\ \hfill z& \hfill =\hfill & r\sin \varphi \hfill \end{array}$$

Which means the differential relationship is

$$\left\{\begin{array}{c}\hfill dx\hfill \\ \hfill dy\hfill \\ \hfill dz\hfill \end{array}\right\}=\left[\begin{array}{ccc}\hfill \cos \varphi \cos \theta & \hfill -r\cos \varphi \sin \theta & \hfill -r\sin \varphi \cos \theta \\ \hfill cos\varphi \sin \theta & \hfill r\cos \varphi \cos \theta & \hfill -r\sin \varphi \sin \theta \\ \hfill \sin \varphi & \hfill 0& \hfill r\cos \varphi \end{array}\right]\left\{\begin{array}{c}\hfill dr\hfill \\ \hfill d\theta \hfill \\ \hfill d\varphi \hfill \end{array}\right\}$$

The determinant has lots of trig cancelation, and we end up with

$$dV=dxdydz=r^2\cos \varphi drd\theta d\varphi$$

as the relationship between differential volumes in the two coordinate systems.

Of course, we’re interested in surface area, not volume, but this analysis is still helpful. To get the differential surface area in spherical coordinates, we drop the $dr$ and set $r=R$:

$$dA=R^2\cos \varphi d\theta d\varphi$$

So to get points on a sphere’s surface that are uniformly distributed over the area, $\theta$ is drawn from a uniform distribution from $-\pi$ to $\pi$ and $\varphi$ is drawn from a distribution whose PDF follows a cosine curve from $-\frac{\pi }{2}$ to $\frac{\pi }{2}$:

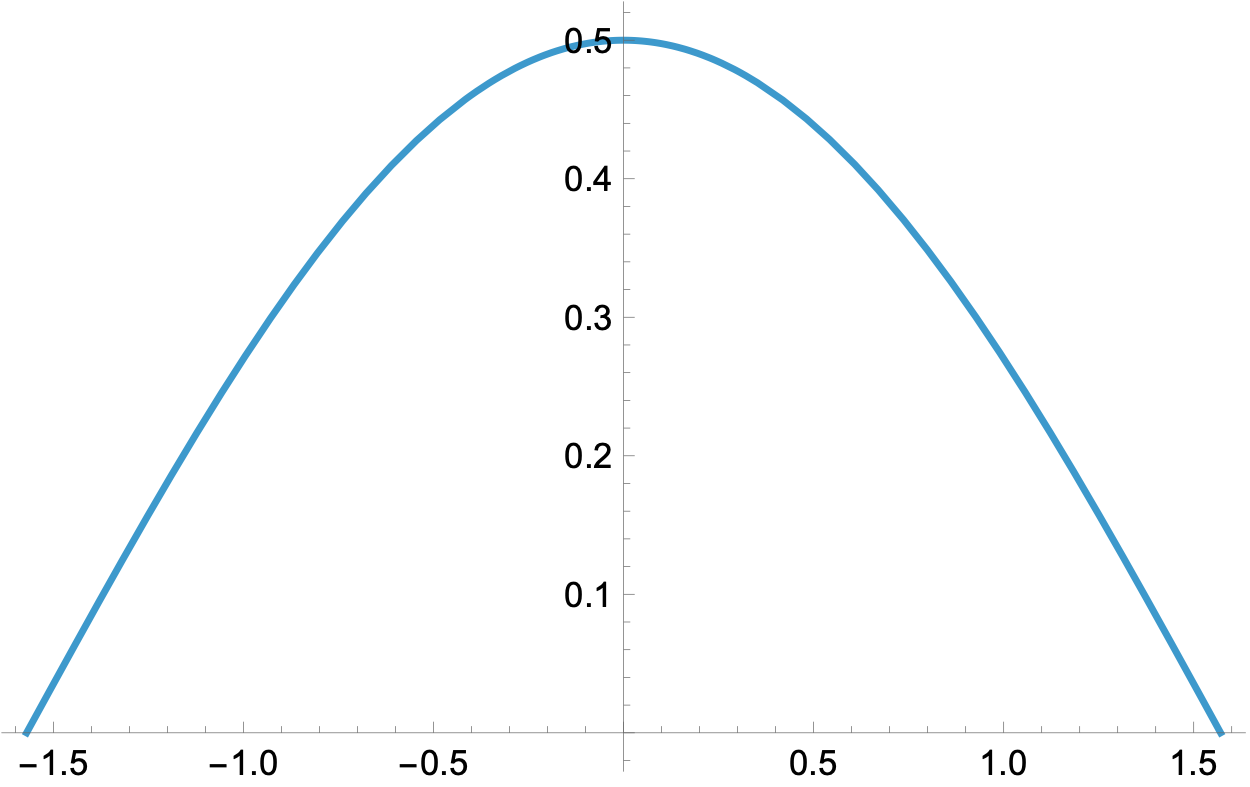

To make this a legitimate PDF, the cosine has been scaled so the integral under the curve is one:

$$f(\varphi )=\frac{\cos \varphi }{2}$$

Unfortunately, this kind of distribution isn’t common. I don’t know of any math packages that include functions for a cosine distribution. No matter. There’s a procedure for generating random numbers from any distribution. We start by integrating the PDF to get the cumulative distribution function:

$$F(\varphi )=\int \frac{\cos \varphi }{2}d\varphi =\frac{\sin \varphi }{2}+C$$

The constant of integration, $C$, is determined by noting that $F=0$ at $\varphi =-\frac{\pi }{2}$. That means $C=\frac{1}{2}$ and

$$F(\varphi )=\frac{1+\sin \varphi }{2}$$

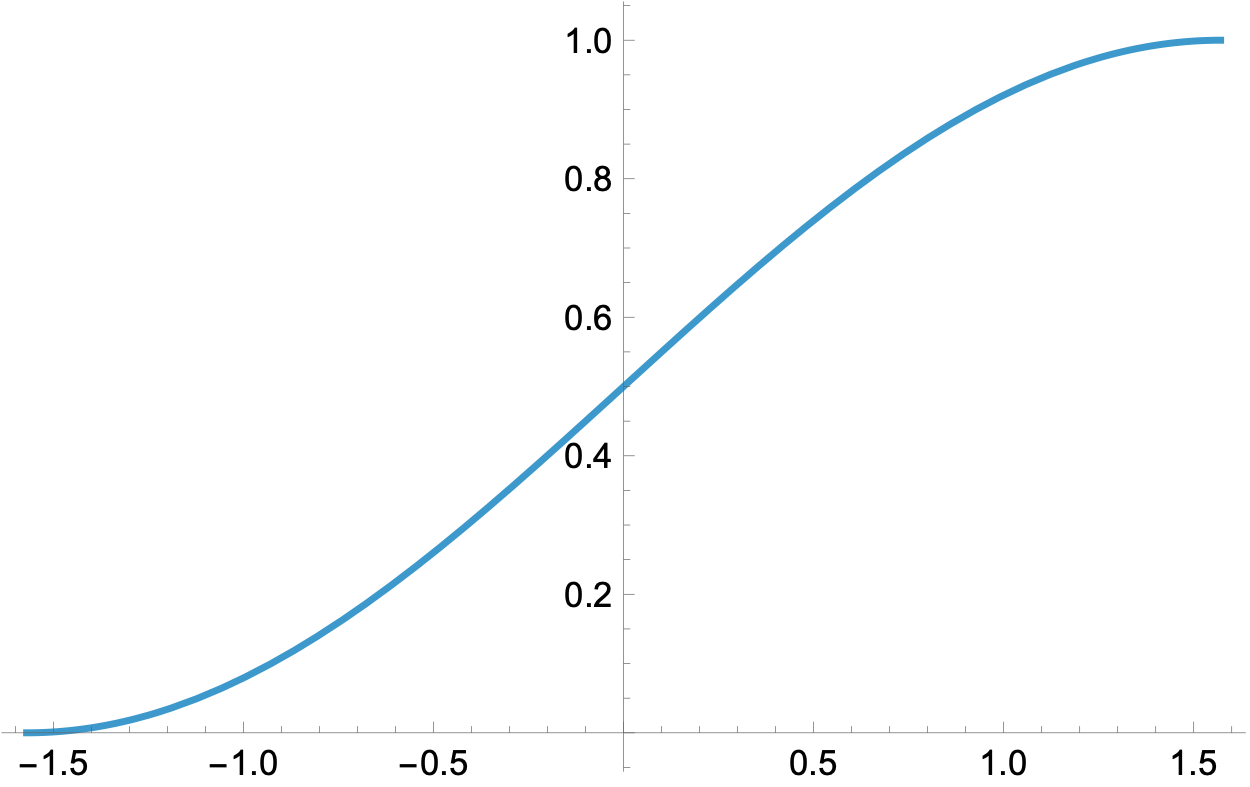

which looks like this:

Here’s the trick: CDFs always have a range from zero to one. So if we generate random numbers that are uniformly distributed from zero to one—which is the most common random number generator—and run them through the inverse of the CDF, we’ll get random numbers with the distribution of interest. In this case,

$$F^{-1}(u)=\sin {}^{-1}(2u-1)$$

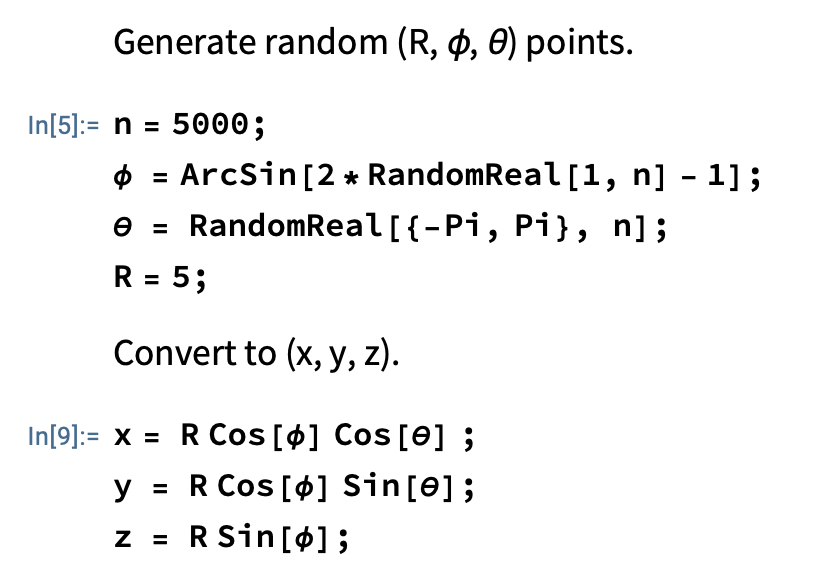

Here’s the Mathematica code for generating a list of 5000 random points on the surface of a sphere of radius 5:

n = 5000;
R = 5;
\[Phi] = ArcSin[2*RandomReal[1, n] - 1];
\[Theta] = RandomReal[{-Pi, Pi}, n];

And here’s the conversion to Cartesian coordinates:

x = R Cos[\[Phi]] Cos[\[Theta]] ;
y = R Cos[\[Phi]] Sin[\[Theta]];
z = R Sin[\[Phi]];

It actually looks nicer in a Mathematica notebook because the Greek letters are rendered properly:

I did this in Mathematica to give me practice. Python code would be similar using NumPy.

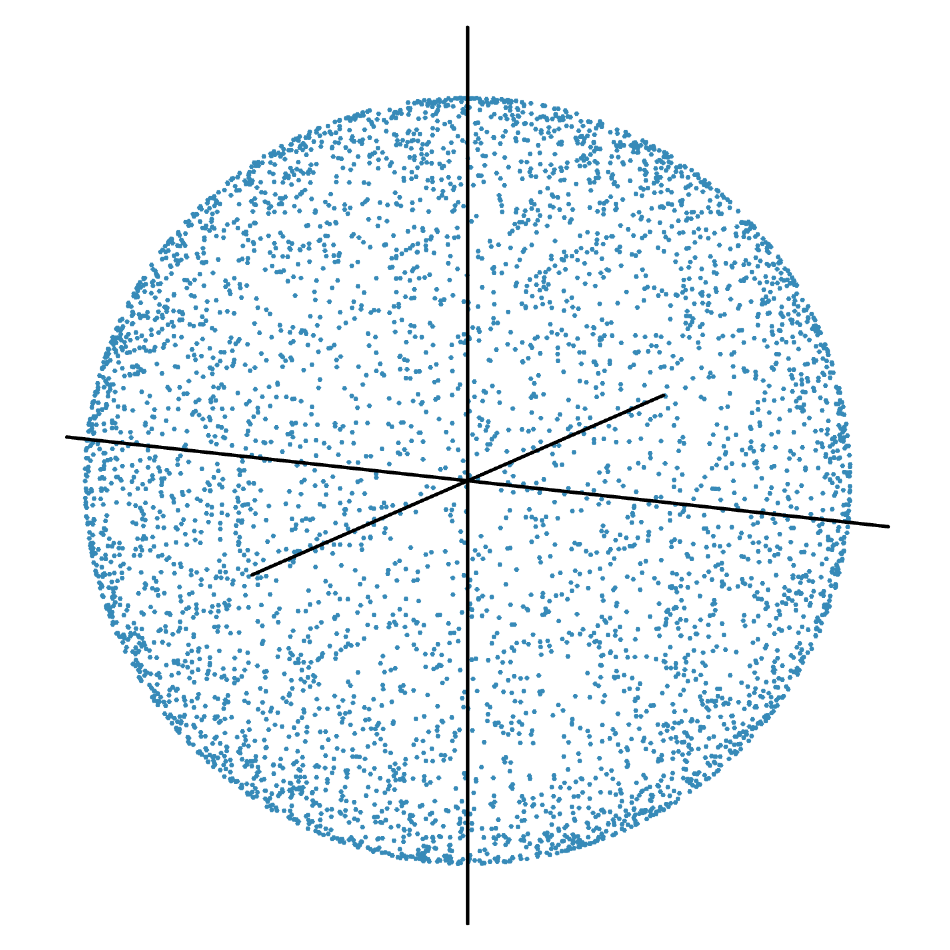

Here’s the plot of the randomly generated points:

It may not be obvious that the points are on the sphere’s surface. Here’s a video of the point cloud rotating slowly. If you look carefully, you’ll see clumps of points moving from the front surface to the rear and vice versa. There are no points within the sphere to block your view.

Is this a better approach than Cook’s rejection/projection method? I guess that depends on your definition of better. To me, this is a cleaner approach because we’re generating the points on the sphere directly. But random number generation is an inherently numerical procedure, which means efficiency can’t be overlooked. Even though Cook is generating three random numbers for every two I generate—and then thows away nearly half of them—I suspect the simpler numerics of his method will win out. My technique uses a handful of trig functions, whereas his most complicated function is the square root.

But it was a fun problem to think about, and it’s the first time I’ve animated a graph in Mathematica.

---

MathML with Pandoc

May 3, 2025 at 11:25 AM by Dr. Drang

Since switching from MathJax to MathML to render equations here on ANIAT, I’ve tried several approaches to generate the MathML. There are many utilities and libraries that claim to do the conversion, but I’ve found all of them to be limited in one way or another. For a while, I was even writing MathML directly, albeit with the help of some Typinator abbreviations, because I couldn’t trust the converters to generate the correct characters or even understand some LaTeX commands I use regularly. Recently, I began using what I should have started out with: Pandoc.

It’s not that I wasn’t aware of Pandoc. Its famous in the Markdown/HTML/LaTeX world, and I probably first heard of it shortly after its release. But I’ve always thought of it as a document converter, not an equation converter. I was wrong. It’s very easy to use with a single equation.

pandoc --mathml <<<'$$T = \frac{1}{2} v_x^2$$'

produces

<p>
  <math display="block" xmlns="http://www.w3.org/1998/Math/MathML">
    <semantics>
      <mrow>
        <mi>T</mi>
        <mo>=</mo>
        <mfrac><mn>1</mn><mn>2</mn></mfrac>
        <msubsup><mi>v</mi><mi>x</mi><mn>2</mn></msubsup>
      </mrow>
      <annotation encoding="application/x-tex">
        T = \frac{1}{2} v_x^2
      </annotation>
    </semantics>
  </math>
</p>

where I’ve added linebreaks and indentation to the output to make it easier to read. Because it’s delimited by double dollar signs, the equation is rendered in block mode, like this:

$$T=\frac{1}{2}{v}_x^2$$

Single dollar signs would generate MathML with a display="inline" attribute.

(If you look at the source code for this page, you’ll see that I usually delete some of the code Pandoc generates—we’ll get to that later.)

All the converters handled simple equations, like $v_0^2$, well, but more complicated stuff can be troublesome. One of the problems other converters have is dealing with multiline equations, something Pandoc handles with ease. For example, this piecewise function definition,

$$ f(x) = \left\{ \begin{array} {rcl}
-1 & : & x<0 \\
0 & : & x=0 \\
+1 & : & x>0
\end{array} $$

is rendered exactly as expected:

$$f(x)=\{\begin{array}{ccc}\hfill -1& \hfill :\hfill & x<0\hfill \\ \hfill 0& \hfill :\hfill & x=0\hfill \\ \hfill +1& \hfill :\hfill & x>0\hfill \end{array}$$

Well, perhaps not exactly as expected. If you’re reading this in Chrome (and, presumably, other Chrome-based browsers), all the cells in the array are aligned left, which puts the zero in the wrong spot, not vertically aligned with the ones. But that’s Chrome’s fault, not Pandoc’s.

Since Pandoc understands the \begin{array} command, it can do matrices, too:

$$k=\frac{EA}{L}\left[\begin{array}{cc}\hfill 1& \hfill -1\\ \hfill -1& \hfill 1\end{array}\right]$$

So far, I’ve found only one small bug in Pandoc’s conversion from LaTeX to MathML. Here’s a simple formula that includes both a summation and a limit:

$$ e^x
= \sum_{n=0}^\infty \frac{x^n}{n!}
= \lim_{n\to\infty} \left( 1+ \frac{x}{n} \right)^n $$

This is what it should look like, a screenshot of the equation as rendered by LaTeX itself:

But here’s how it comes out after passing the equation to Pandoc:

$$e^x=\sum _{n=0}^{\infty }\frac{x^n}{n!}=\underset{}{\lim }{(1+\frac{x}{n})}^n$$

The summation is fine, but the limit is formatted incorrectly. The $n\to \infty$ part should be under the $\lim$, not off to the side like a subscript. That subscript-like formatting is what you’d use for an inline equation, not a block equation.

Let’s see what happened. Here’s the MathML produced by Pandoc:

xml:
 1:  <math display="block" xmlns="http://www.w3.org/1998/Math/MathML">
 2:    <semantics>
 3:      <mrow>
 4:        <msup><mi>e</mi><mi>x</mi></msup>
 5:        <mo>=</mo>
 6:        <munderover>
 7:          <mo>∑</mo>
 8:          <mrow><mi>n</mi><mo>=</mo><mn>0</mn></mrow>
 9:          <mo accent="false">∞</mo>
10:        </munderover>
11:        <mfrac>
12:          <msup><mi>x</mi><mi>n</mi></msup>
13:          <mrow><mi>n</mi><mi>!</mi></mrow>
14:        </mfrac>
15:        <mo>=</mo>
16:        <munder>
17:          <mi>lim</mi><mo>⁡</mo>
18:          <mrow><mi>n</mi><mo>→</mo><mi>∞</mi></mrow>
19:        </munder>
20:        <msup>
21:          <mrow>
22:            <mo form="prefix" stretchy="true">(</mo>
23:              <mn>1</mn><mo>+</mo>
24:              <mfrac><mi>x</mi><mi>n</mi></mfrac>
25:            <mo form="postfix" stretchy="true">)</mo>
26:          </mrow>
27:          <mi>n</mi>
28:        </msup>
29:      </mrow>
30:      <annotation encoding="application/x-tex">
31:        e^x
32:        = \sum_{n=0}^\infty \frac{x^n}{n!}
33:        = \lim_{n\to\infty} \left( 1+ \frac{x}{n} \right)^n
34:      </annotation>
35:    </semantics>
36:  </math>

The problem with the rendering of the limit is in Line 17. There’s an empty <mo>⁡</mo> element after the <mi>lim</mi> element. That’s what’s messing up the formatting. If we remove that empty element, the limit gets formatted the way it should:

$$e^x=\sum _{n=0}^{\infty }\frac{x^n}{n!}=\underset{n\to \infty }{\lim }{(1+\frac{x}{n})}^n$$

Obviously, I’m not going to try to fix Pandoc; I have no idea how to program in Haskell. I’ll send a note to John McFarlane (can he really still be the sole developer?) about the rendering bug, but in the meantime I’ll just remember to delete the empty <mo>⁡</mo> whenever I need a limit.

I think I’ve mentioned in the past that one of my favorite features of Markdown is that it allows you to mix HTML with regular Markdown text; it passes the HTML through unchanged. I’m using that here to add MathML equations to my blog posts. I write the equation in LaTeX, select it, and run a Keyboard Maestro that replaces the LaTeX with its MathML equivalent. Because I’m still messing around with the macro (and may change it to an automation that BBEdit runs directly) I won’t post it here, but I do want to include the Python script that runs Pandoc to do the conversion and then cleans up Pandoc’s output to make it more compact.

Here’ the script:

python:
 1:  #!/usr/bin/env python3
 2:
 3:  import sys
 4:  import subprocess
 5:  from bs4 import BeautifulSoup
 6:
 7:  # Get LaTeX from stdin, run it through Pandoc, and parse the HTML
 8:  latex = sys.stdin.read()
 9:  process = subprocess.run(['pandoc', '--mathml'], input=latex, text=True, capture_output=True)
10:  html = process.stdout
11:  soup = BeautifulSoup(html, 'lxml')
12:
13:  # Extract the MathML
14:  math = soup.math
15:
16:  # Delete the annotation
17:  math.annotation.decompose()
18:
19:  # Delete the unnecessary <semantics> wrapper
20:  math.semantics.unwrap()
21:
22:  # Delete the unnecessary top-level <mrow> wrapper in block display
23:  if math['display'] == 'block':
24:    math.mrow.unwrap()
25:
26:  # Delete the unnecessary attribute for inline display
27:  if math['display'] == 'inline':
28:    del math['display']
29:
30:  # Print the cleaned-up MathML
31:  print(math)

Lines 8–10 get the LaTeX equation from standard input, pass it through Pandoc via the subprocess.run function, and save the standard output to the html variable. Line 11 then parses html with Beautiful Soup, putting it in a form that makes it very easy to change.

Because we don’t need the <p></p> tags the MathML is wrapped in, we pull out just the <math></math> part in Line 14. The rest of the code removes elements and attributes that can be useful, but which don’t add to the rendering of the equations. You may disagree with my removal of these pieces, but it’s my blog.

First, I don’t want to keep the original LaTeX code, so Line 17 deletes the <annotation></annotation> tag and everything inside it. With that gone, <semantics> and </semantics> are no longer necessary, so I got rid of them, too. Unlike the decompose function, which removes tags and their contents, unwrap removes just the tags, leaving behind what’s between them.

I’ve noticed there’s always an extra <mrow></mrow> wrapper around block equations, so Lines 23–24 get rid of that. And because display="inline" is the default, Lines 27–28 deletes that attribute from the <math> tag. When the MathML code is in the middle of a paragraph, it helps readability to make it as small as possible.

One thing I’m not entirely happy with is the need to select the equation before doing the conversion to MathML. I think I can use BBEdit’s AppleScript library to control the cursor and make the selection before sending the text to the Python script. But I haven’t been using this system long enough to know where my cursor is likely to be when I want to convert the equation. The obvious answer is to assume it’ll be after the final dollar sign, but I’ve been at this long enough to mistrust the obvious.

---
